Specifications
General specifications
- LOA 28′
- Beam 9’9″
- Cabin Headroom 6’4″
- Cabin Size (L x W) 9’3″ x 7’8″
- Cockpit Size (L x W) 7′ x 7’10”
- Draft (motors up) 22″
- Draft (motors down) 39″
- Approximate Dry Weight 10,000 lbs
- Holding Tank Capacity 30 US gal.
- Water Capacity 60 US gal.
- Fuel Capacity 300 US gal.
- Sleeping Capacity 6
- Deadrise 22°
Hull, deck and cockpit
- Ten (10) year Warranty
- Diamond Sea Glaze aluminum windshield w/tempered safety glass
- Custom non-skid deck, cockpit surface and gunwale boards
- Self-draining cockpit with scupper drains
- 316L stainless steel bow rail
- Heavy duty rubguard
- Unitized construction
- Anchor locker with bow roller and cleat
- Bomar foredeck hatch with screen
- (3) wipers
- Sliding forward side windows with screens
- Eight 316L stainless steel 8″ mooring cleats
- Courtesy cockpit lights
- Built in live well
- Large cockpit storage compartment

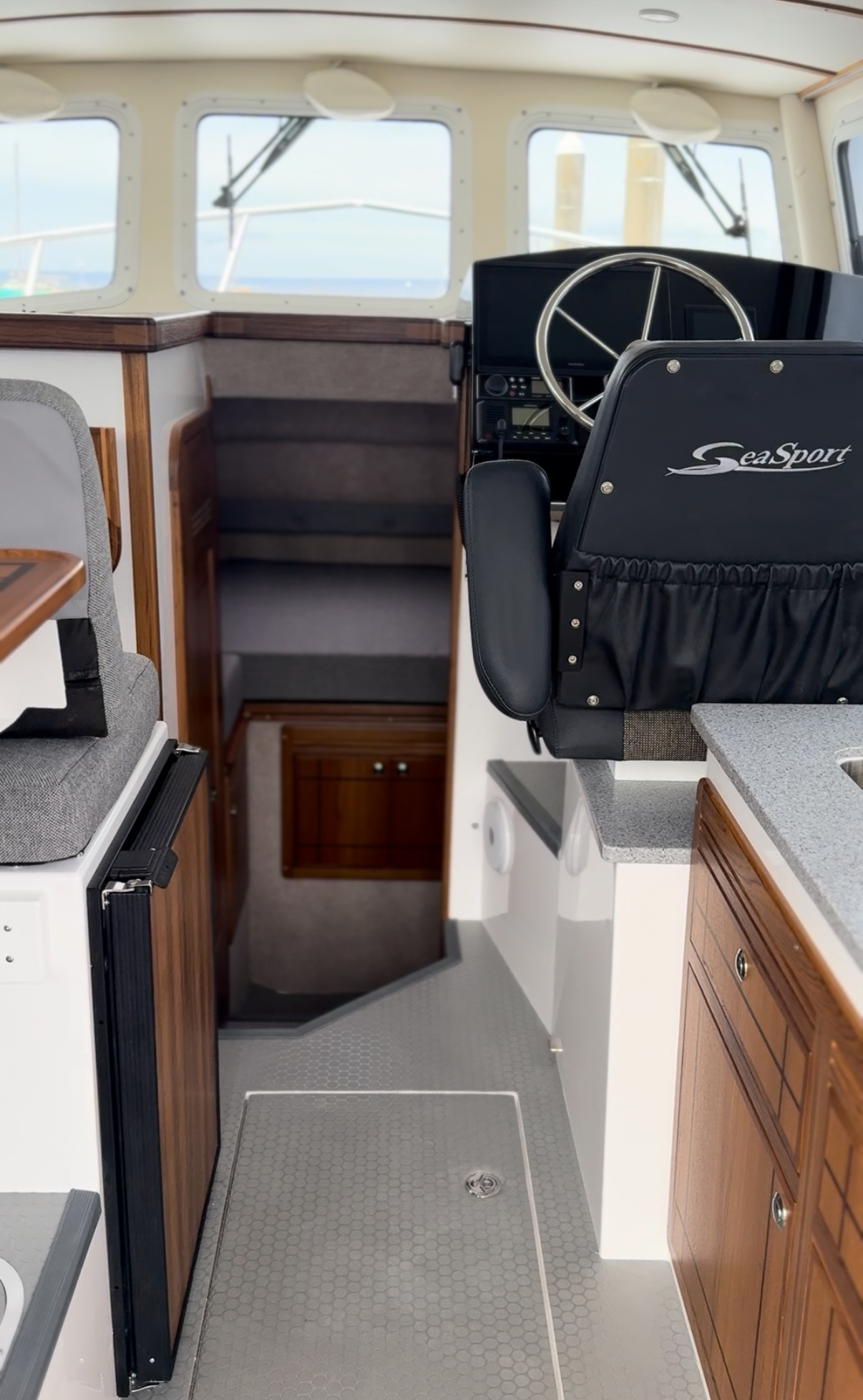

- Bentley helm seat with armrests
- Hardtop 316L SS hand rails
- Deck dogleg 316L SS hand rails
- Cockpit shelves

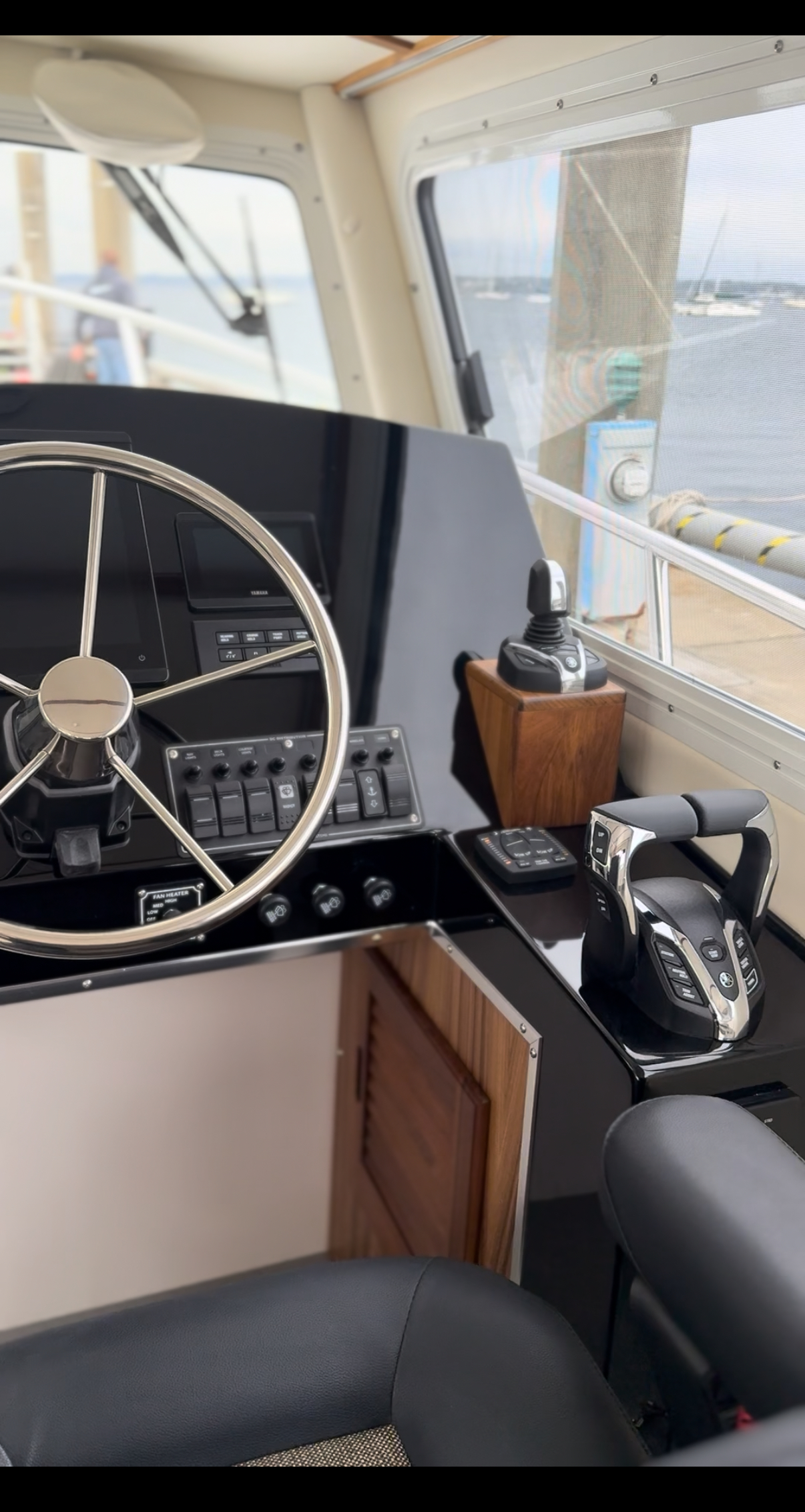

- Hydraulic Steering
- Trim Tabs
Performance

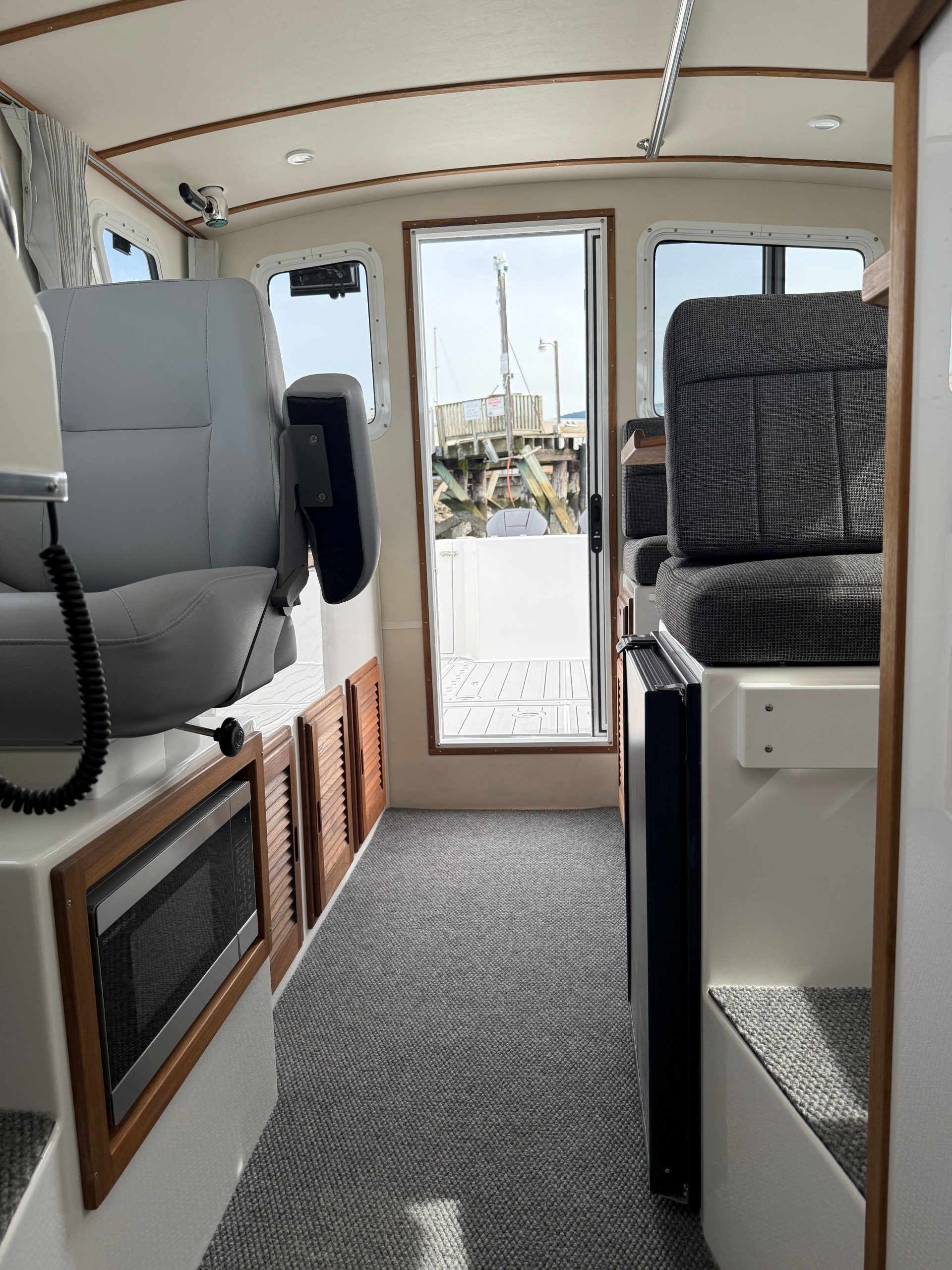

Comfort and interior
- Complete marine floor carpeting
- Removable vinyl headliner for easy access to the hardtop

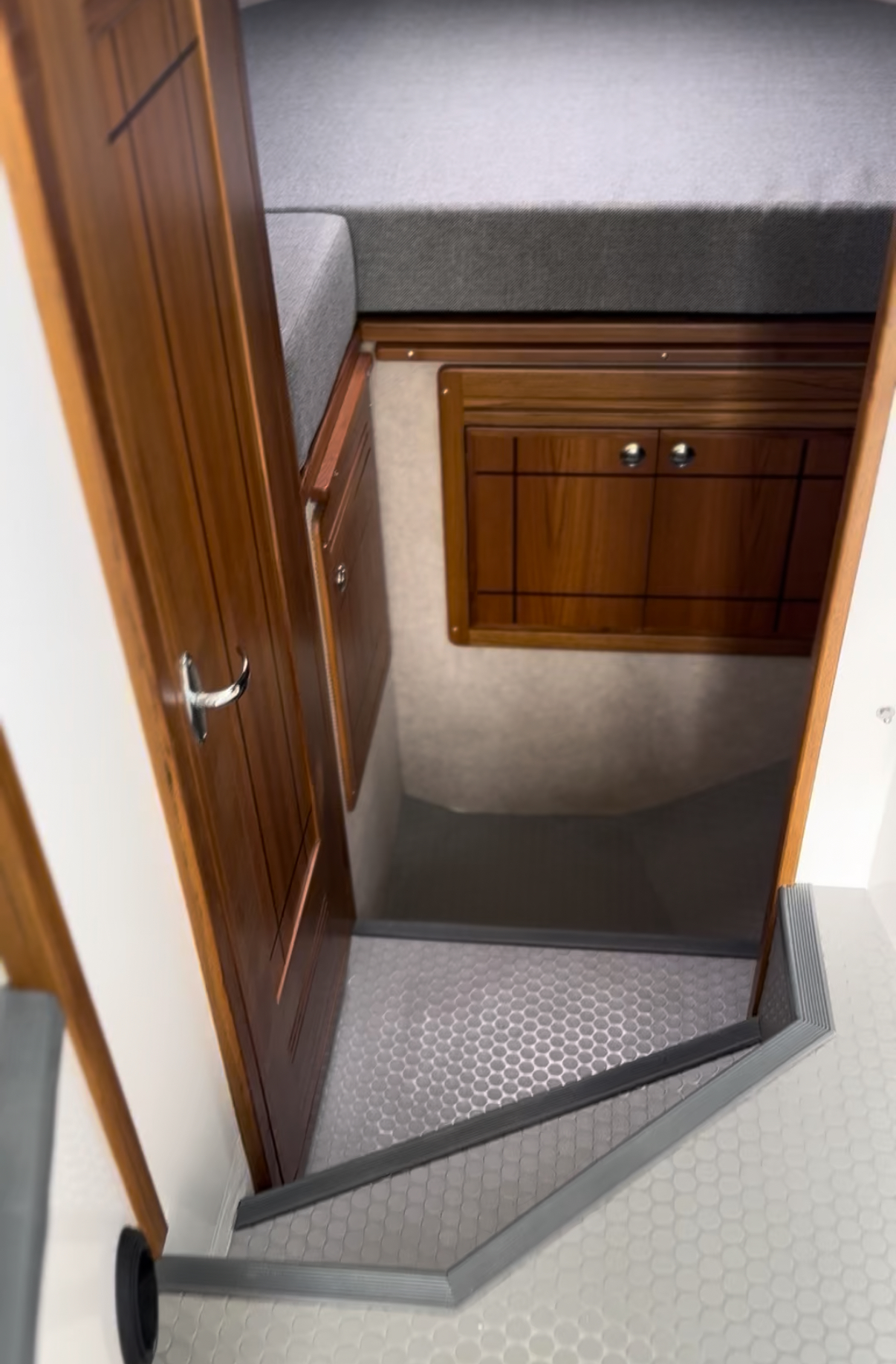

- Large V-berth w/ storage beneath and privacy curtain
- Full fabric cushions
- (3) 12-volt reading lights w/ switch in v-berth

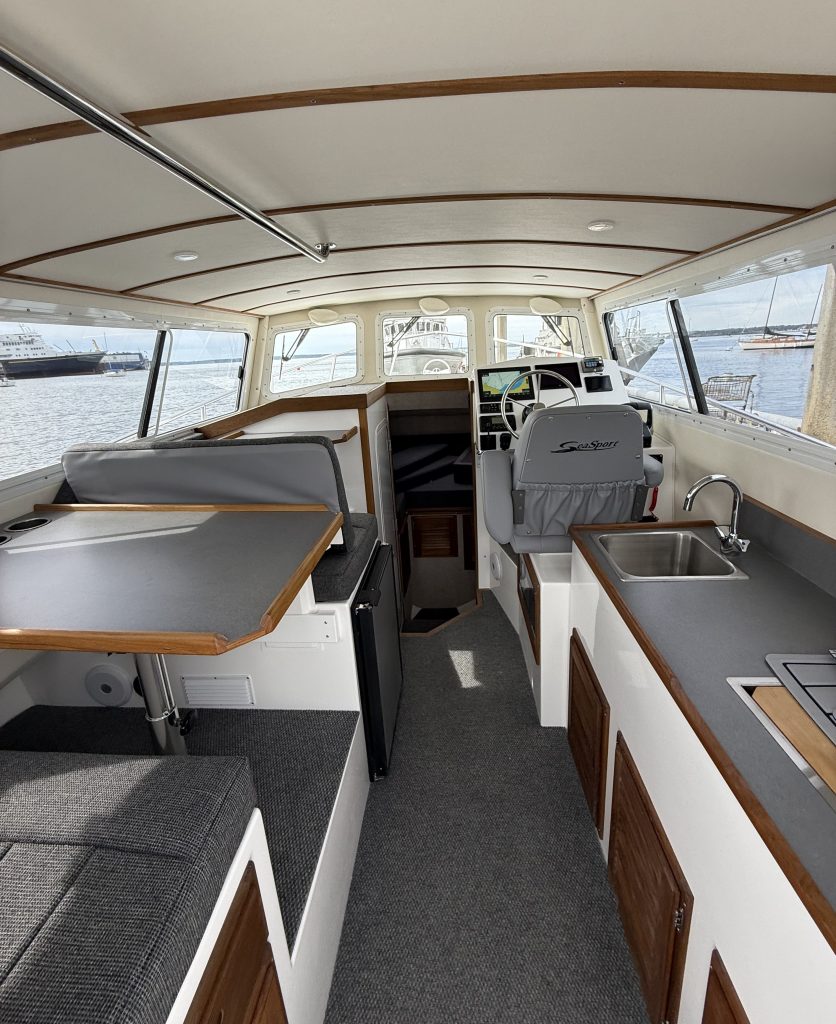

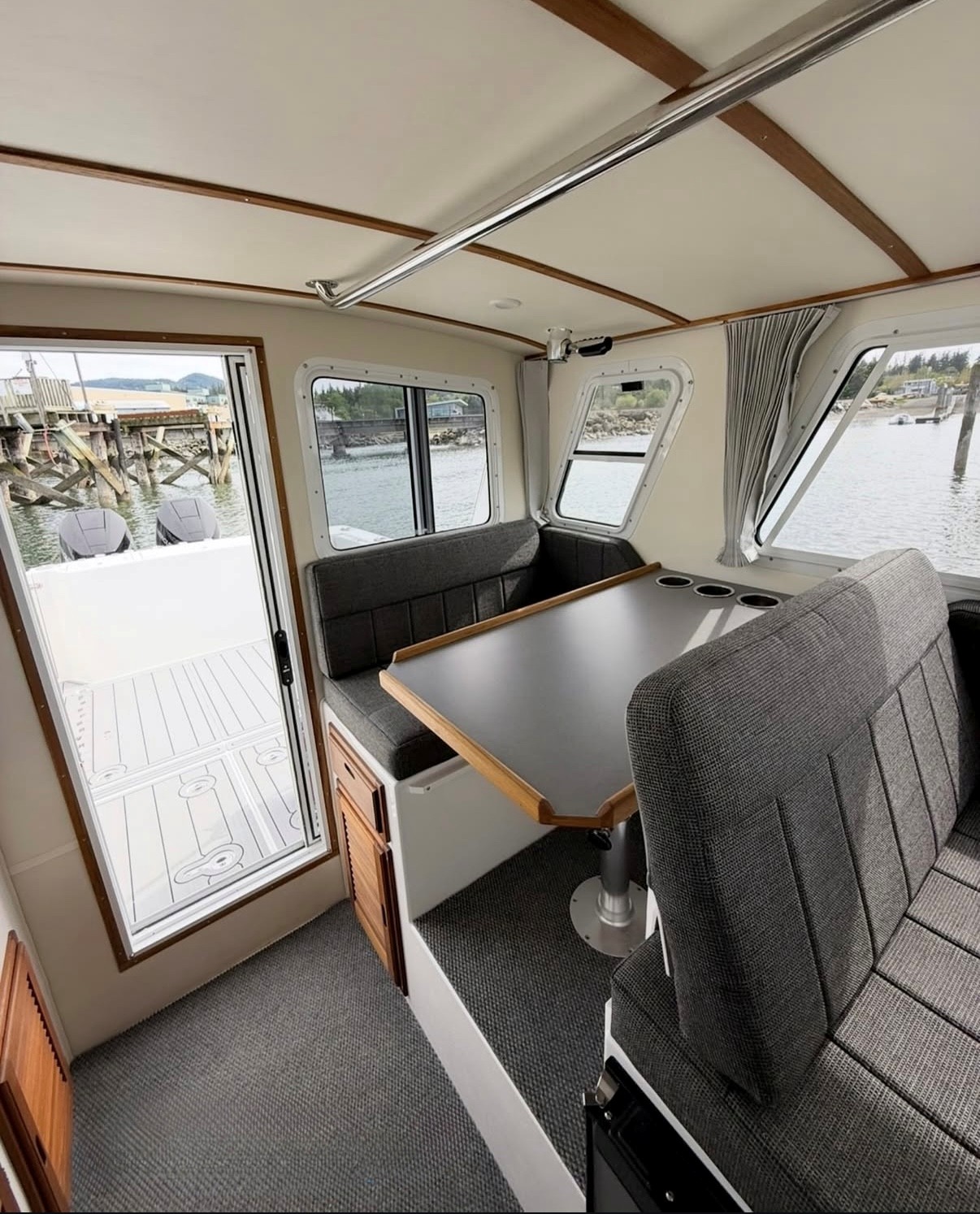

- Full Dinette and Galley
- Compass
- 110V outlet, GFI protected

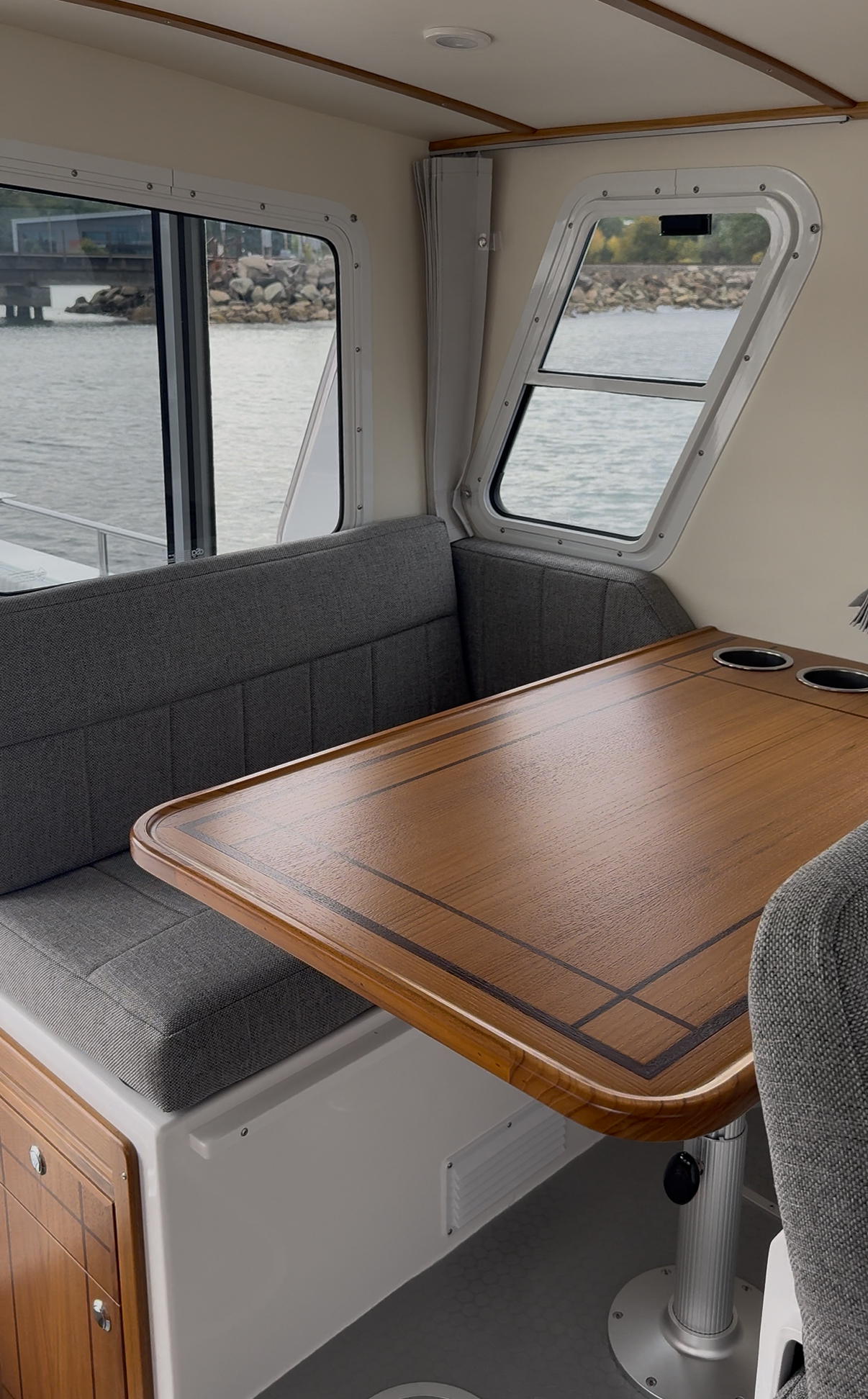

- Formica table with adjustable aluminum pedestal; dinette seating area w/storage underneath
- Dinette converts to sleeper
- Ambient Air Defroster
- Pressurized hot and cold water
Galley and Head

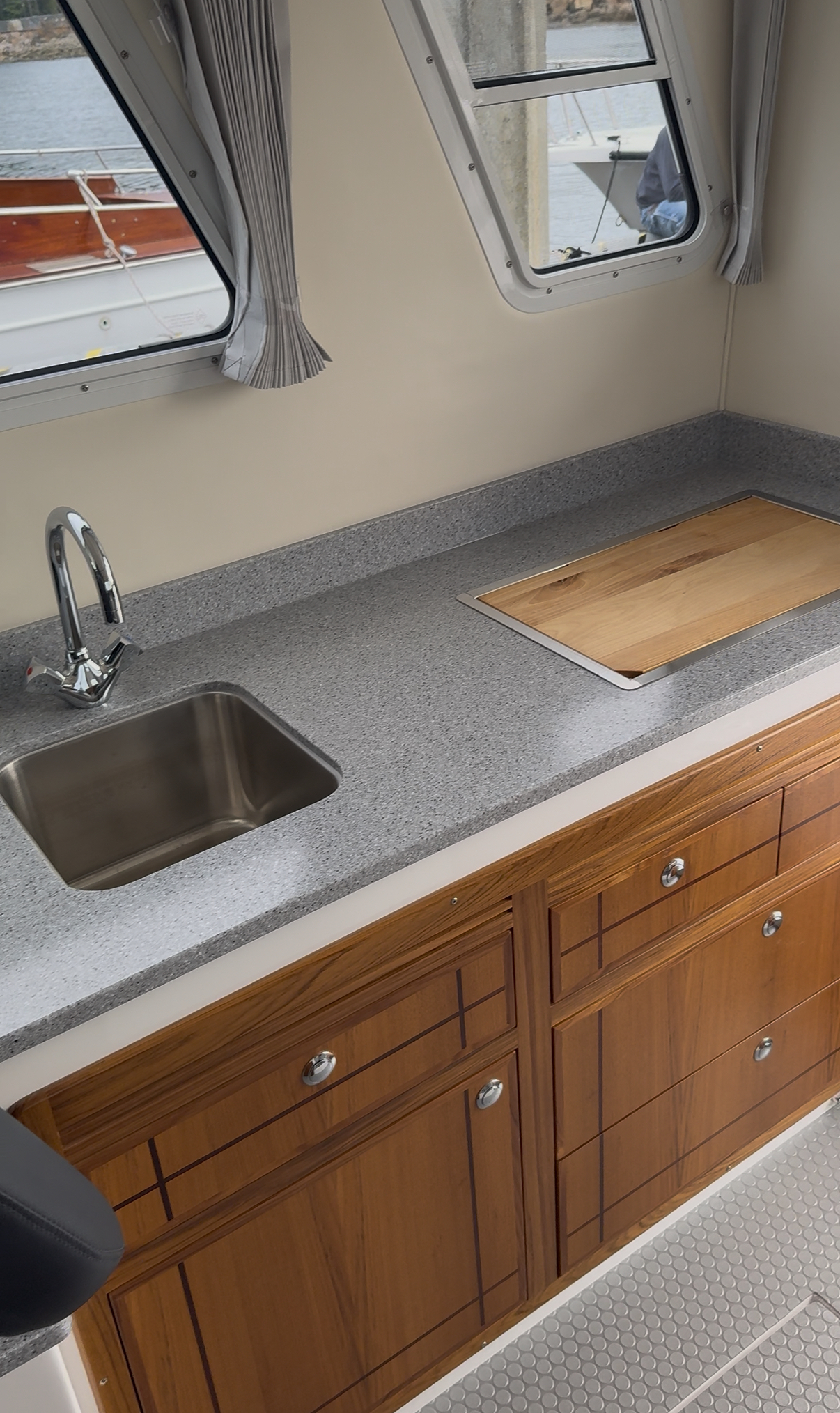

- Complete Formica galley top with storage underneath

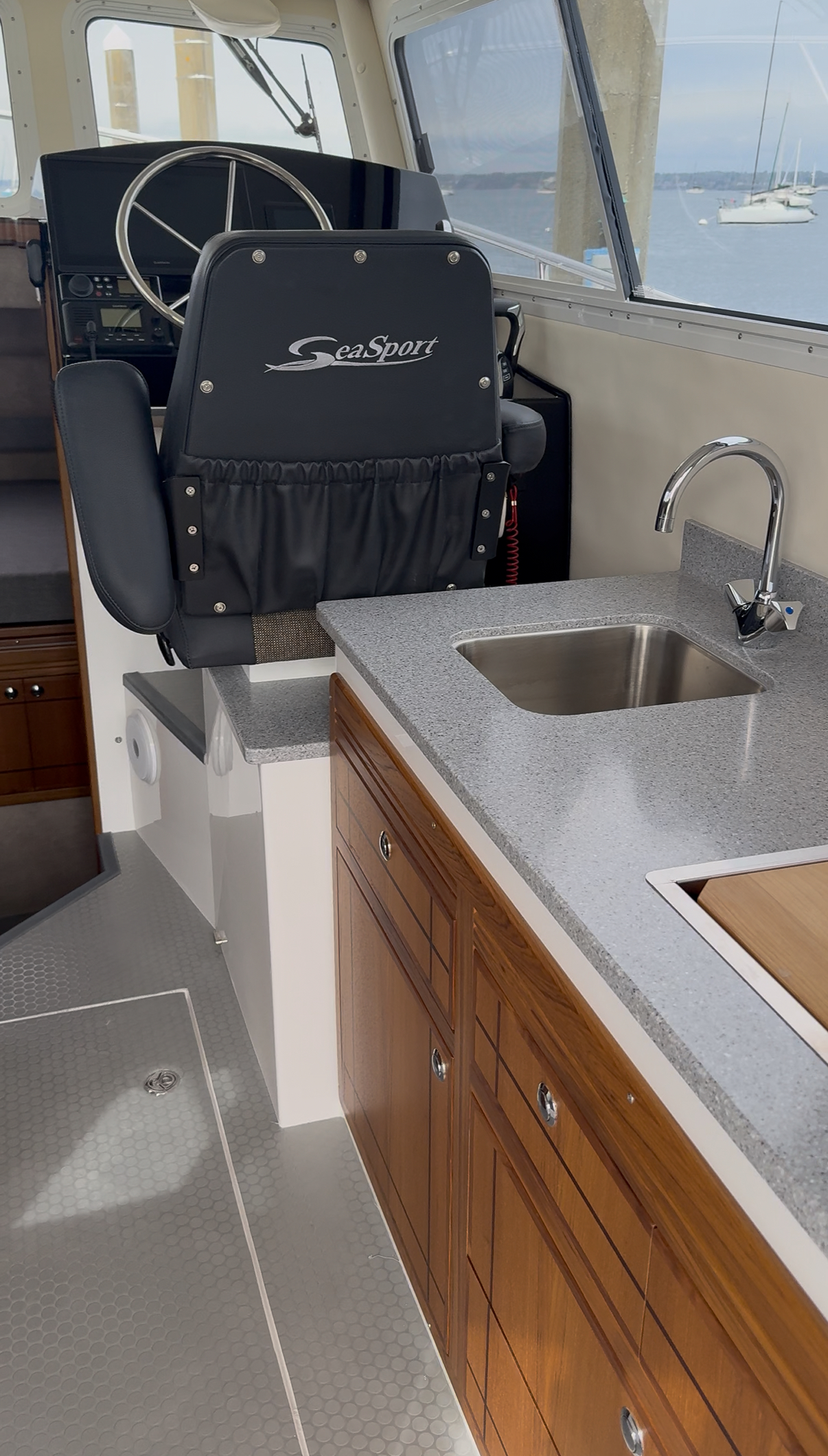

- Deep sink with hot and cold water
- Galley storage cabinets

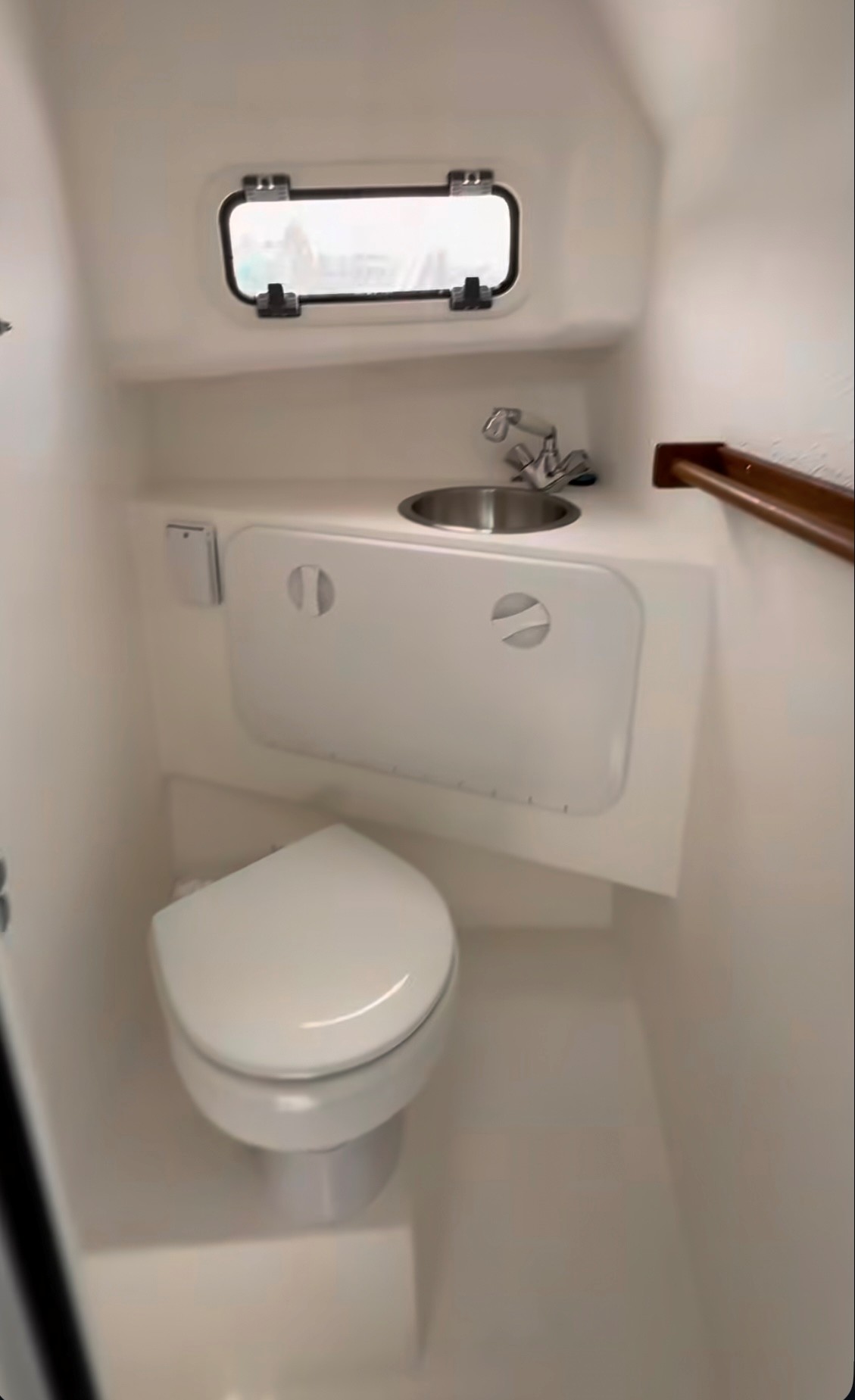

- Marine head with macerator
- Water and waste tank gauge
Instrumentation and Safety Equipment
- Sea Sport custom master circuit breaker switch panel for 12V &110V
- (2) batteries, (1) for the house and (1) for the start
- Seastar steering cylinder
- Deluxe Richie Compass
- Battery charger
- Fresh water tank – 60 Gallons
- Fuel tank – 300 gallons
- Forward facing horn
- Automatic/Manual bilge pumps
- Bennett trim tabs
- Certification/Standard Compliance: ABYC, USCG, CE
Color Selection
- Colored Gunnel Stripe and Boot stripe color options — Blue, Cabernet, Forest Green, Black
- Custom colors optional
- Fabric packages to match gel-coat colors
Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Sea Sport dealer.
