Specifications
General specifications
- LOA 24’0″
- Beam 8’6″
- Cabin Headroom 6’4″
- Cabin Size (L x W) 8’3″ x 6’10”
- Cockpit Size (L x W) 6’8″ x 7′
- Draft (motors up) 22″
- Draft (motors down) 39″
- Approximate Dry Weight 5500 lbs
- Holding Tank Capacity 8 US gal.
- Water Capacity 25 US gal.
- Fuel Capacity 129 US gal.
- Sleeping Capacity 4
- Deadrise 22°
Hull, deck and cockpit
- Ten (10) year Warranty
- Diamond Sea Glaze aluminum windshield w/tempered safety glass
- Custom non-skid roof, deck, cockpit surface and gunwale boards
- Self-draining cockpit with scupper drains
- 316L stainless steel bow rail
- Aluminum rub guard with rubber insert
- Unitized construction
- Anchor locker with bow roller and cleat
- Bomar foredeck hatch with screen
- (3) wipers
- Sliding forward side windows with screens
- Six (6) 316L stainless steel 8″ mooring cleats
- Courtesy cockpit lights
- Built-in fish cleaner
- Large cockpit storage compartment
- Bentley helm seat with armrests
- Hardtop 316L SS hand rails
- Deck dogleg 316L SS hand rails
- Cockpit shelves
- Hydraulic Steering
- Trim Tabs
- Tailgate Blue Gunnel Stripe
Performance
Comfort and interior
- Complete marine floor carpeting
- Removable vinyl headliner for easy access to the hardtop
- Large V-berth w/ storage beneath and privacy curtain
- Full fabric cushions
- (2) 12-volt reading lights w/ switch in v-berth

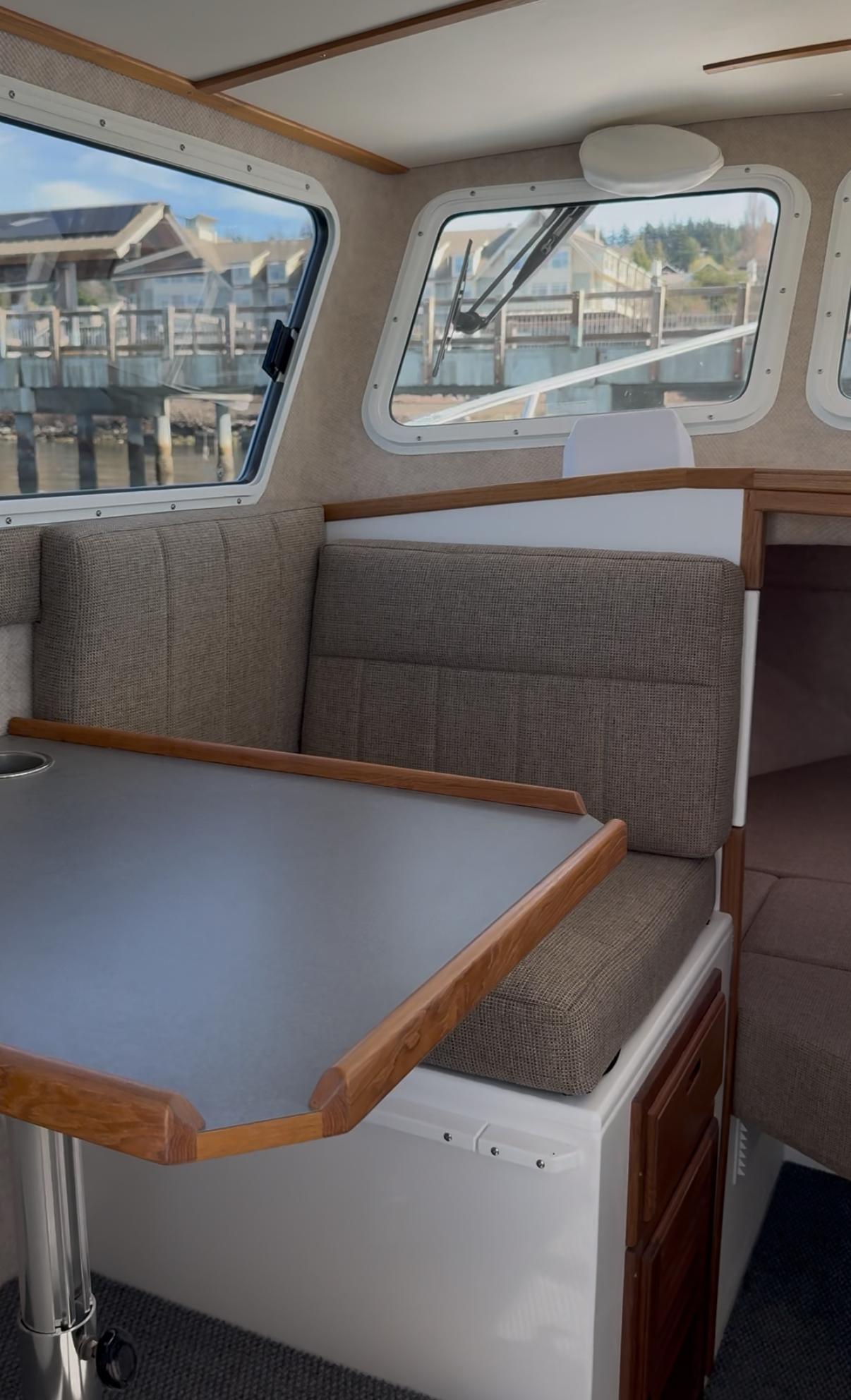

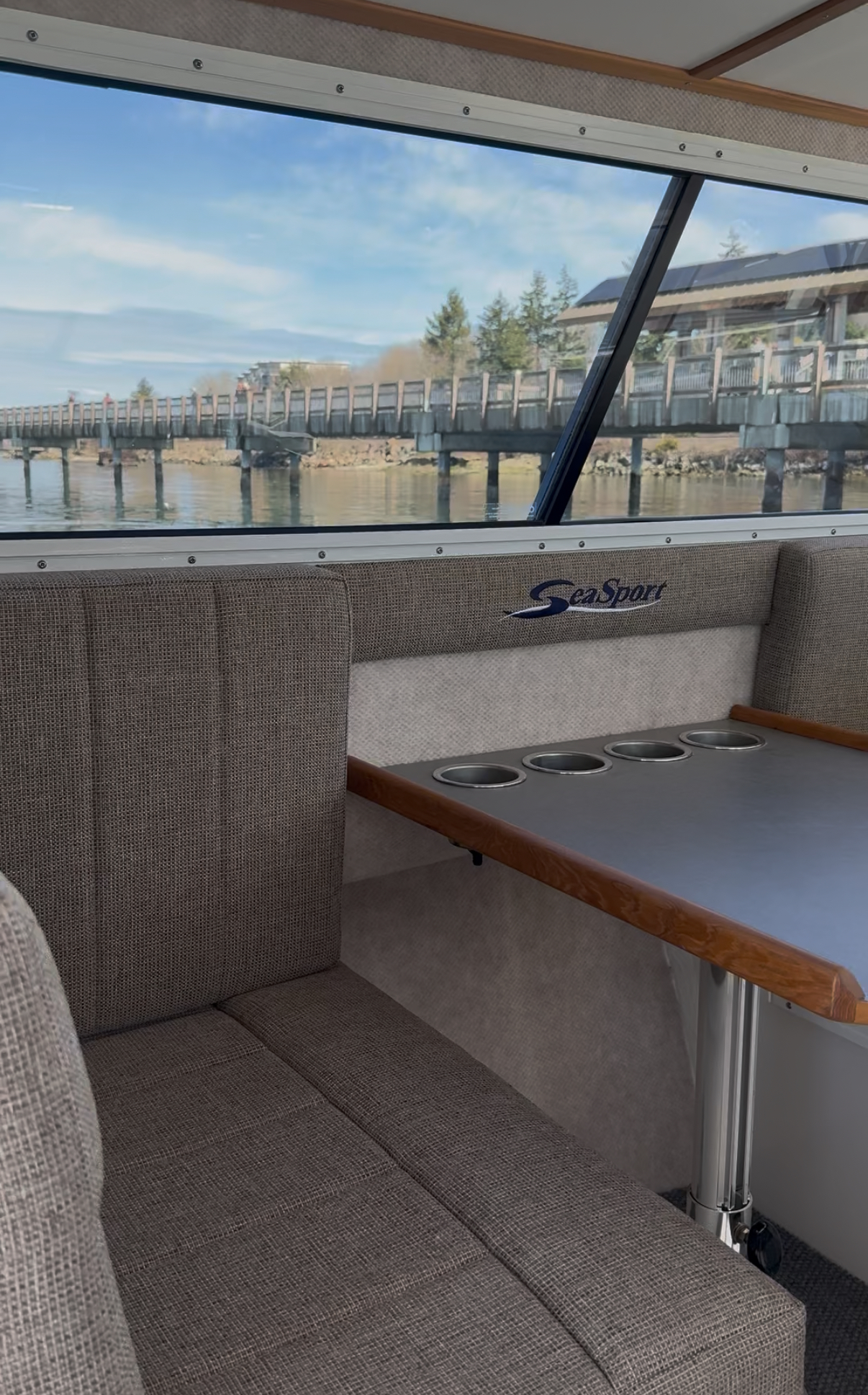

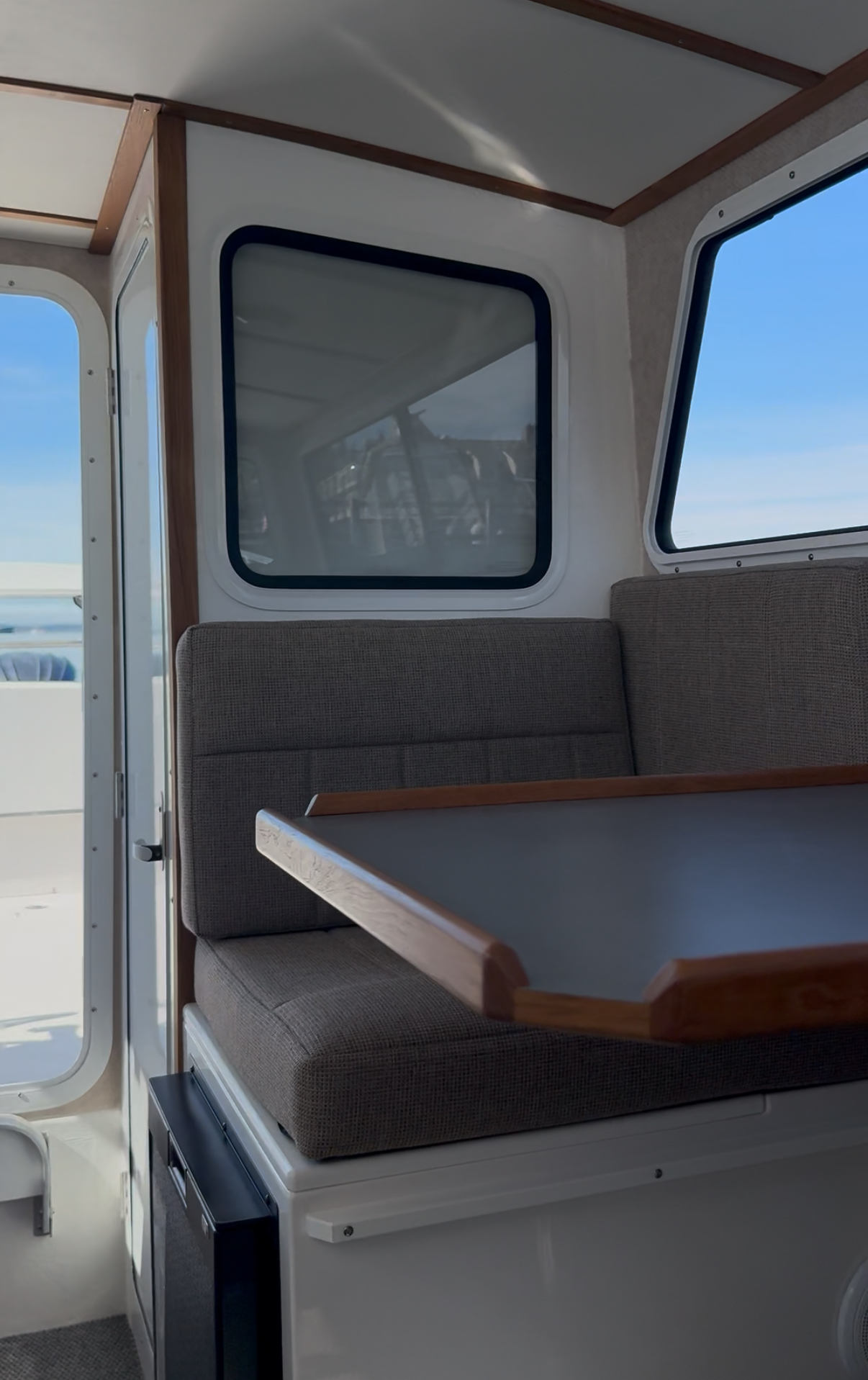

- Full Dinette and Galley
- Compass
- 110V outlet, GFI protected
- Formica table with adjustable aluminum pedestal; dinette seating area w/storage underneath
- Dinette converts to sleeper
- Nova-Kool 2600 refer
- V-berth Shelves
- Ambient Air Defroster

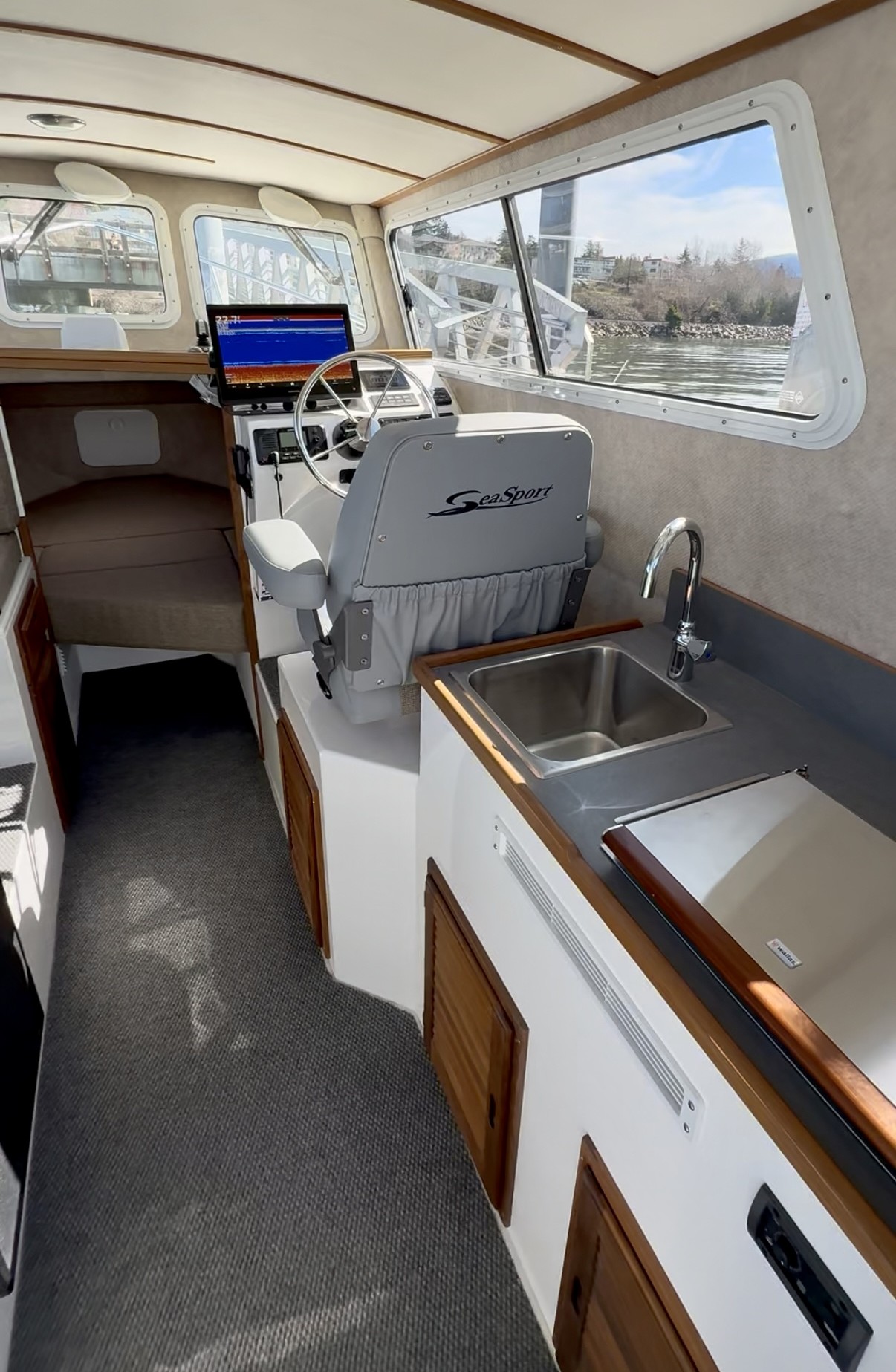

Galley and Head
- Complete Formica galley top with storage underneath
- Deep sink w/pressurized cold water faucet
- Galley storage cabinets

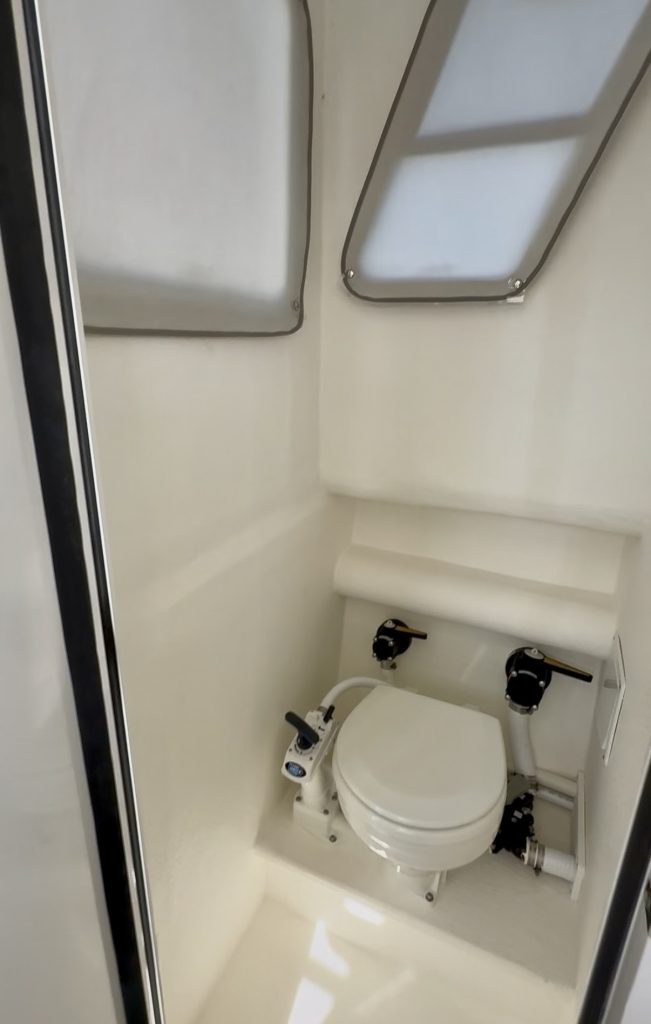

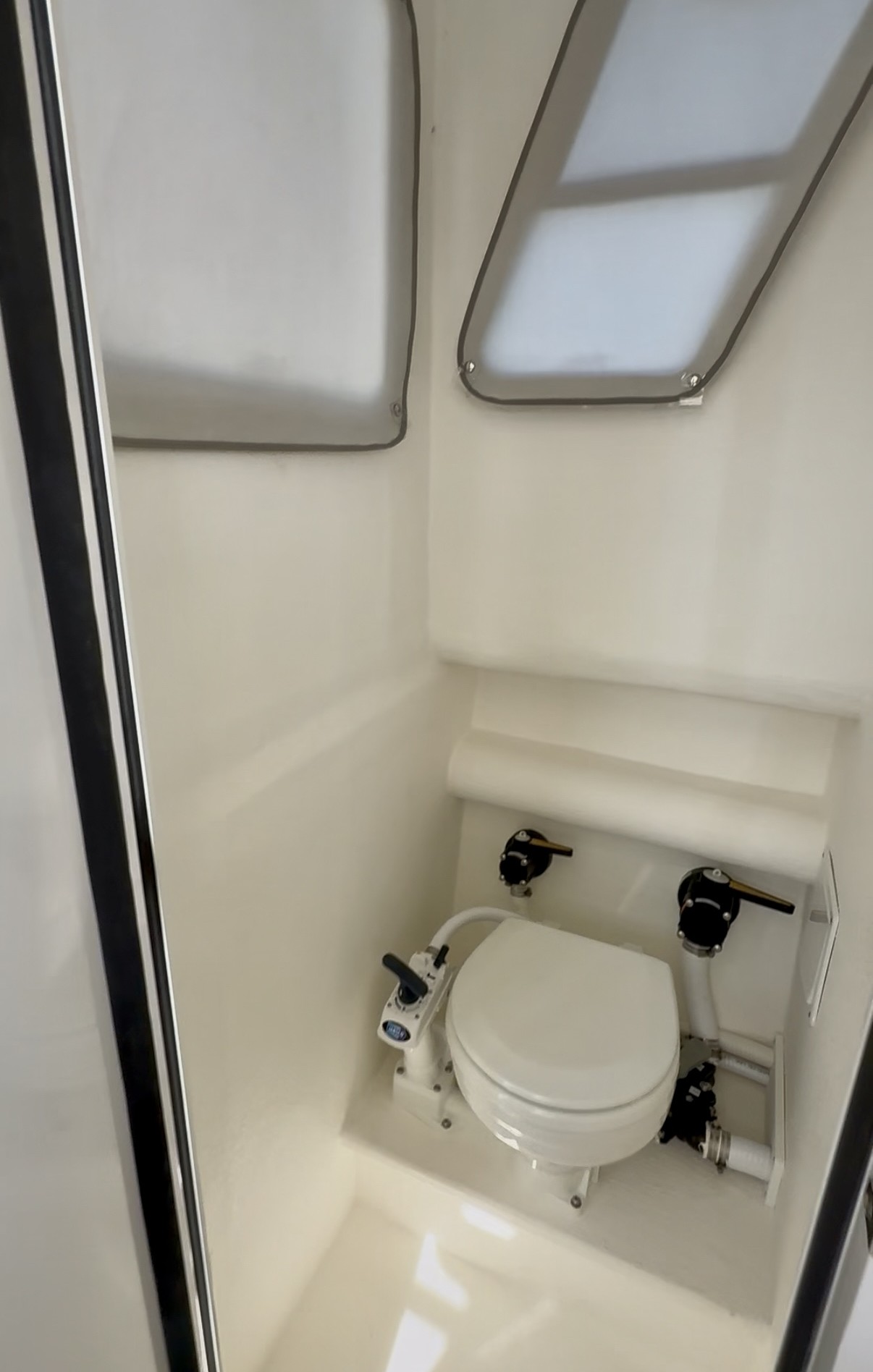

- Marine head with macerator
- Head compartment drain
Instrumentation and Safety Equipment
- Sea Sport custom master circuit breaker switch panel for 12V &110V
- (2) batteries, (1) for the house and (1) for the start
- Teleflex hydraulic steering cylinder
- Deluxe Richie Compass
- One (1) 20 amp battery charger for engine start batteries and house electronics
- Fresh water tank – 25 Gallons
- Fuel tank – 120 gallons
- Forward facing horn
- Automatic/Manual Bilge Pumps
- Bennett trim tabs
- Certification/Standard Compliance: ABYC, USCG, CE
- Shore power with charger
Color Selection
- Colored Gunnel Stripe and Boot stripe color options — Blue, Cabernet, Forest Green, Black
- Custom colors optional
- Fabric packages to match gel-coat colors
Specifications as well as standard and optional equipment are subject to change without notice. All measurements approximate. For more information and pricing, please contact your local Sea Sport dealer.
